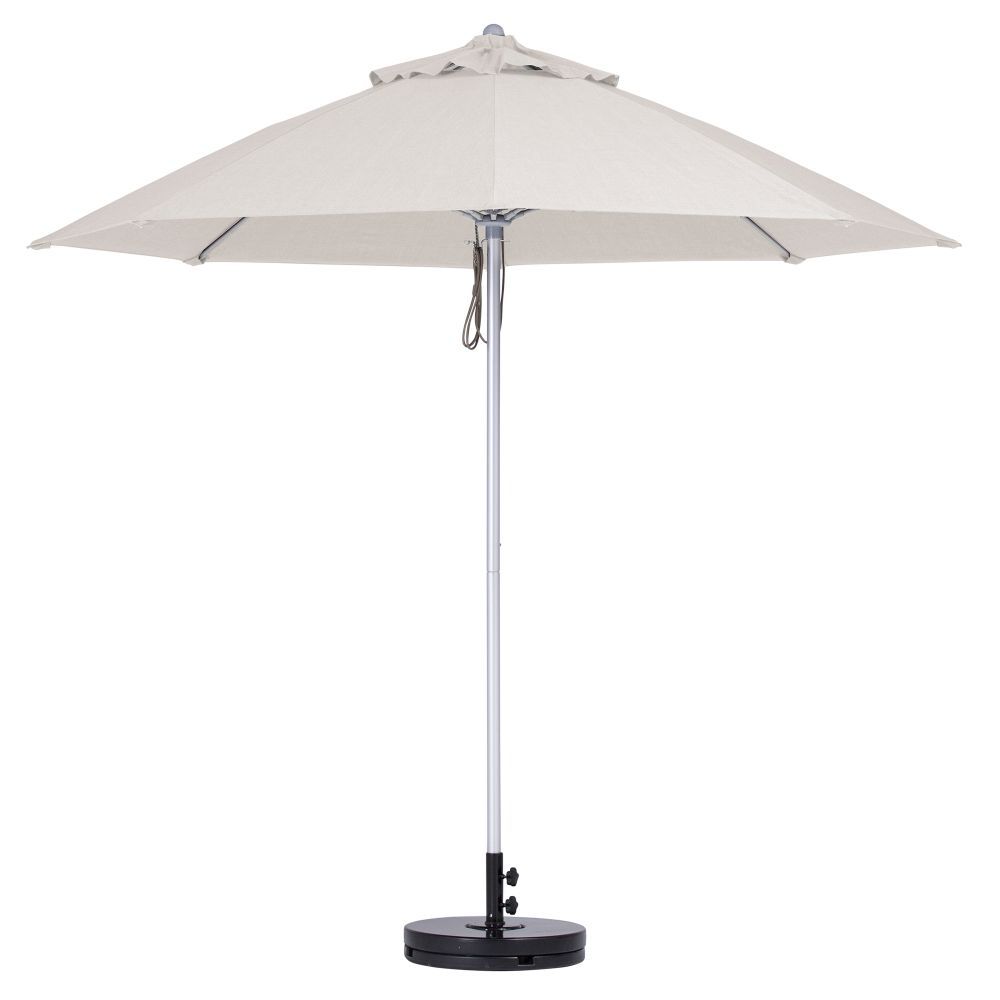

Monterey 2.7m Octagonal Patio Umbrella
Choose your optional base:
- Silver 19kg freestanding base: $149 including GST. 60cm x 60cm plate with 40mm spigot, supplier code UNBSFSB4019SM. Base plate and spigot included; no castors.
- Black 35kg heavy base plate plus castors: $549 including GST. Includes 1 x UNBSFSB4035BK base plate ($399 including GST) and 1 x UNBSFSBWHEELSS castor set ($150 including GST).
Bases are optional extras and are not included with the umbrella unless selected. Castors are included when the black heavy-base package is selected.
A patio umbrella with a genuinely useful trick: keep winding past fully open and the canopy tilts by itself. No buttons, no catches, no reaching up to release anything. 5.2 m² of shade that follows the sun across the afternoon.
The ribs are flexible fibreglass, and a commercial grade crank handle does the winding.
What is included. Monterey Octagonal Patio Umbrella - 2.7M x 1 (required; choose your canopy colour). Optional extras, each added only if you select it: 35kg Black Umbrella Base Plate with Castor Set - 40mm Spigot x 1, Center Post Base Plate and Spigot 40mm x 1, In-ground Socket & Sleeve Kit - 40MM x 1, 55cm Grey Concrete Umbrella Base - 40mm Spigot x 1, Set of 2 PVC Sandbags - Grey x 1, 60cm Silver Freestanding Umbrella Base - 19kg - 40mm Spigot x 1.
Key Features
UNIQUE AUTO TILT
Keep winding past fully open and the canopy tilts automatically, no buttons or catches to fiddle with.
FLEXIBLE FIBREGLASS RIBS
Super strong and flexible fibreglass ribs.
COMMERCIAL GRADE CRANK
A commercial grade crank handle.
EVERYDAY PATIO SHADE
5.2m² of shade from a 2.7m octagonal canopy.
BASE OPTIONS
Choose a flat base plate, a heavy wheeled base plate, a grey concrete base, a centre post base plate and spigot, or an in-ground socket and sleeve kit, each available as an optional extra.
WIND GUIDANCE
50 km/h installed wind rating, or 30 km/h on a 30 kg concrete base. Always close the umbrella in unsuitable weather.
Canopy colours. Natural, Slate and Smoked Tweed. Further colours are available made to order for an additional charge. Fabric colours can vary slightly from a printed or on screen swatch.
Frame. Silver anodised as standard. Non standard powder coat finishes are available to order with a longer lead time.
Warranty. A 3 year frame warranty and a 2 year warranty against fading on the canopy.
Wind guidance. The wind rating depends on how the umbrella is installed: 50 km/h when fixed in place, or 30 km/h freestanding. Wind speeds are a guide only and wind damage is not covered by warranty, so close and secure the canopy whenever conditions turn.

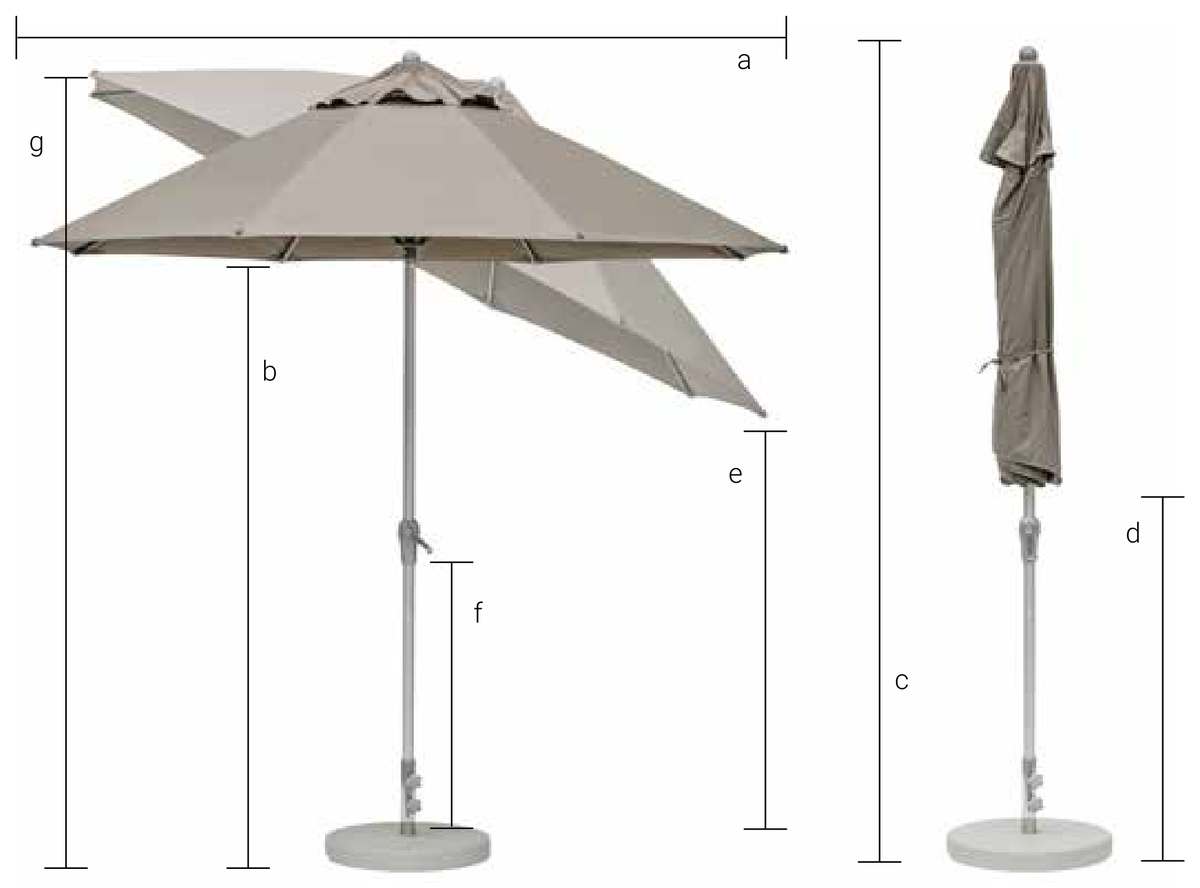

Dimensions
Canopy width270 cm
Canopy shade area5.2 m²
Canopy edge height, open205 cm
Height, closed271 cm
Closed canopy clearance125 cm
Top of base to winder handle100 cm
Post3.8 cm diameter x 2 mm x 260 cm
35kg Black Umbrella Base Plate with Castor Set - 40mm Spigot x 1 (optional)
Overall dimensions60cm W x 60cm D x 45cm H
Post size40mm
ConstructionZinc plated black powder coated base with 40mm spigot and included locking wheels
Weight35kg base plus 10kg wheel set; 47kg boxed
55cm Grey Concrete Umbrella Base - 40mm Spigot x 1 (optional)
Overall dimensions55cm W x 55cm D x 33cm H
Post size40mm
ConstructionGrey moulded concrete base with 304 stainless steel 40mm spigot
Weight30kg base; 32kg boxed
Care & Cleaning
Close and strap the canopy when the umbrella is not in use, and fold it neatly so the fabric does not rub in the same place every time. Rinse with clean water and a soft brush, and avoid harsh chemicals and bleach. Wipe the frame with a damp cloth and a mild detergent, keep the winding mechanism clean and dry, and store the umbrella closed and covered over winter or in extended bad weather.
Frequently Asked Questions
How does the tilt work?
Keep winding past fully open and the canopy tilts automatically, with no buttons or catches to fiddle with.
How much shade does it give?
5.2 m² of shade from a 270 cm octagonal canopy. The canopy edge sits at 205 cm when open.
What base options are there?
Choose a flat base plate, a heavy wheeled base plate, a grey concrete base, a centre post base plate and spigot, or an in-ground socket and sleeve kit, each available as an optional extra.
What wind rating applies?
The wind rating depends on how the umbrella is installed: 50 km/h when fixed in place, or 30 km/h freestanding. Wind speeds are a guide only and wind damage is not covered by warranty, so close and secure the canopy whenever conditions turn.
What warranty comes with it?
A 3 year frame warranty and a 2 year warranty against fading on the canopy.
Please note: packed for delivery this umbrella measures 200 x 20 x 20 cm and weighs 11 kg.
