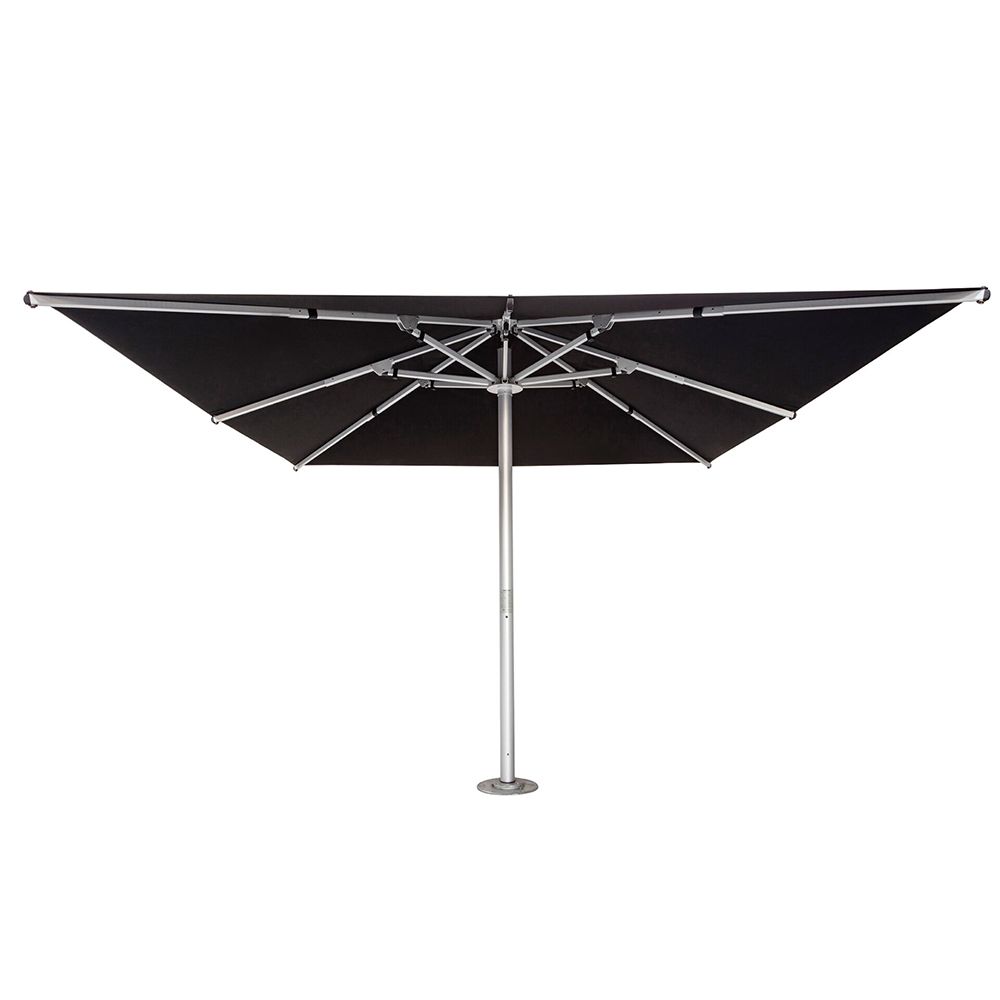

Instant Shade Nova LX 4m Square Giant Telescopic Umbrella Bundle with LED
A giant telescopic umbrella that opens to 16 m² from a single centre post. The telescopic crank system winds the canopy up and out, so you get a very large span without a cantilever arm or guy ropes taking up space around it.
The Nova LX replaces the Nova HD and now has LED lighting built into the mast and support arms as standard, controlled by remote with adjustable brightness and RGB colour. An activation kit is required to switch the lighting on. The mast is strengthened extruded aluminium with double reinforced joints.
This bundle lets you build your setup in a single order. Choose your canopy canvas, then add the optional LED Activation Kit and the mounting hardware that suits your site, only if you need them. Installed wind rating 90 km/h.
What is included. Nova LX 4m Square umbrella x 1 (required; choose acrylic or waterproof PVC canvas), LED Lighting Activation Kit x 1 (optional), Base Plate x 1 (optional; 400mm round or 240mm square) and Inground Sleeve x 1 (optional). The base plate and inground sleeve are alternative mounting methods, so you would normally pick one. A hinged spigot is included with the umbrella.
Key Features
GIANT TELESCOPIC
A telescopic crank system winds the canopy up and out, giving 16 m² of shade from a single centre post.
INTEGRATED LED LIGHTING
LED lighting is built into the mast and support arms as standard, with remote control, adjustable brightness and RGB colour. An activation kit is required to switch it on.
STRENGTHENED MAST
A strengthened extruded aluminium mast, 94 mm in diameter, with double reinforced joints, sized for commercial use.
ACRYLIC OR PVC CANOPY
Choose a solution dyed acrylic canopy or a fully waterproof 650GSM welded PVC canopy. Both are made to order.
HINGED SPIGOT
A hinged spigot is included with the umbrella and makes installation and servicing manageable on an umbrella of this size.
FRAME AND FADE WARRANTY
A 3 year frame warranty, with a 5 year fade warranty on both the acrylic and the waterproof PVC canopy.
Canopy choice. Choose a solution dyed acrylic canopy or a fully waterproof 650GSM welded PVC canopy in 12 colours. Both are made to order. Add your chosen colour in the notes box at checkout and we will confirm it with you before production.
Frame. Silver anodised as standard. Non standard powder coat finishes are available to order with a longer lead time.
Warranty. A 3 year frame warranty, with a 5 year fade warranty on both the acrylic and the waterproof PVC canopy.
Wind guidance. Installed wind rating 90 km/h. Wind speeds are a guide only and wind damage is not covered by warranty, so close and secure the canopy whenever conditions turn. Always close the umbrella in unsuitable weather.
Dimensions
Nova LX 4m Square umbrella x 1
Canopy width400 cm
Canopy shade area16 m²
Canopy edge height, open232 cm
Total height, open308 cm
Height, closed418 cm
Closed canopy clearance133 cm
Mast diameter94 mm
Installed wind ratingup to 90 km/h
Weight, packaged100 kg
LED Lighting Activation Kit x 1 (optional)
PurposeSwitches on the LED lighting pre-installed in the umbrella
ControlRemote control with colour change, and a smartphone app option
Cable10m low-voltage
RequiredOne kit per umbrella to enable the lighting
Base Plate x 1 (optional)
Size400mm round or 240mm square
FixingBolts to concrete or solid decking
Inground Sleeve x 1 (optional)
FixingSoft surfaces, setting the mast below ground level
Wind ratings are a guide only; the warranty does not cover wind damage regardless of wind speed. Measurements are rounded and may vary, and the open height changes slightly as the canopy ages. Umbrellas must be installed in accordance with the manufacturer's instructions and specifications.
Care & Cleaning
Close and strap the canopy when the umbrella is not in use, and fold it neatly so the fabric does not rub in the same place every time. Rinse with clean water and a soft brush, and avoid harsh chemicals and bleach. Wipe the frame with a damp cloth and a mild detergent, keep the winding mechanism clean and dry, and store the umbrella closed and covered over winter or in extended bad weather.
Frequently Asked Questions
Do I have to buy the LED kit?
No. The LED Activation Kit is optional. The lighting is pre-installed, so you can add the kit now or later to switch it on, or skip it.
Do I need both a base plate and an inground sleeve?
No. They are alternative mounting methods, so choose the one that suits your surface. A hinged spigot is included with the umbrella.
Can I choose the canopy colour?
Yes. The umbrella is made to order. Choose acrylic or PVC canvas, then add your colour in the notes box at checkout and we will confirm it before production.
What wind rating and warranty apply?
The installed wind rating is 90 km/h. A 3 year frame warranty and a 5 year fade warranty apply, and wind damage is not covered by warranty.
Please note: packed for delivery this umbrella weighs 100 kg packaged, so plan for mechanical handling on delivery.
