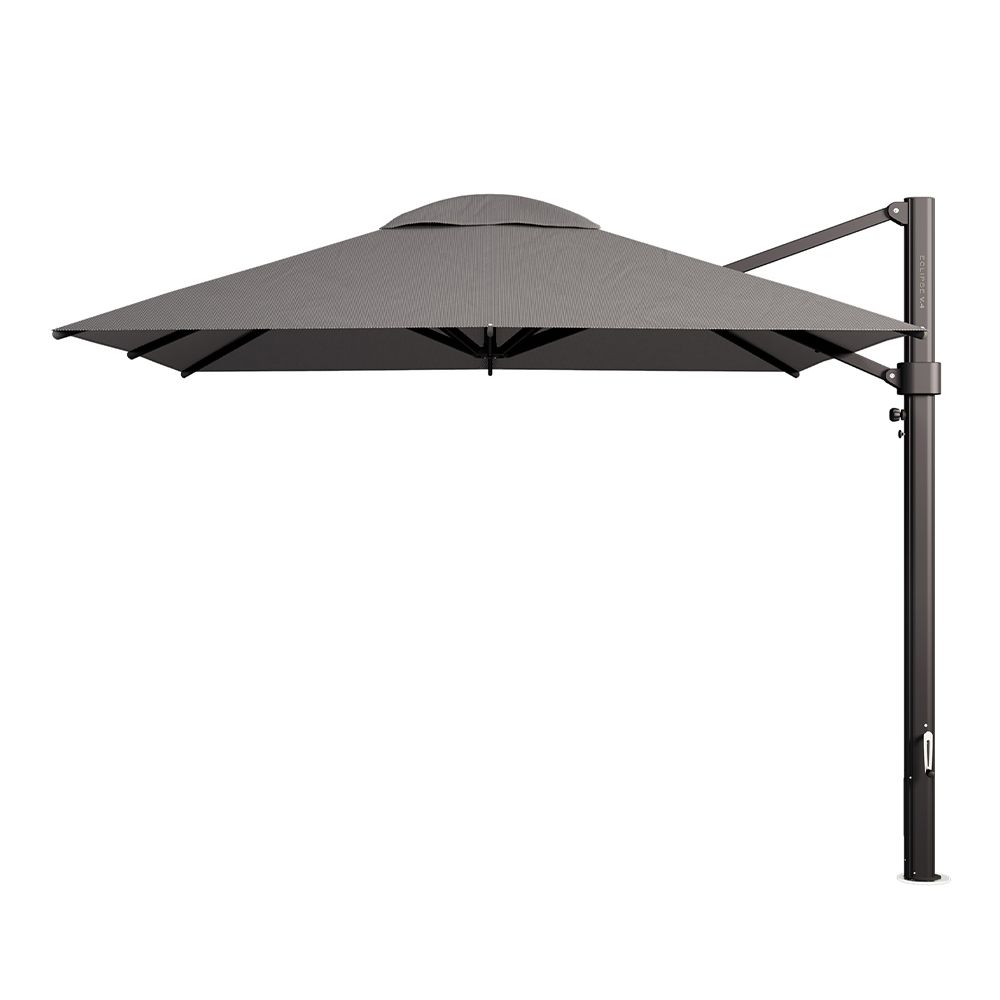

Eclipse V4 3m Square Cantilever Umbrella
A side post cantilever umbrella that puts 9 m² of shade exactly where you need it, with no centre pole in the way. The mast sits to one side, so the space underneath stays completely open for a dining setting, a daybed or the edge of a pool.
The Eclipse V4 is Instant Shade's heavy duty cantilever, designed in Australia and carrying Australian Design Application No. 202418675. The frame is extruded marine grade anodised aluminium, and at 44 kg folded it is built for genuinely exposed positions rather than sheltered courtyards.
Key Features
HEAVY DUTY BUILD
Extruded marine grade anodised aluminium mast, built for exposed sites like pool surrounds, high decks and coastal gardens.
360 DEGREE ROTATION
An integrated rotation handle and lock turns the canopy through a full circle with 24 locking positions to follow the sun.
INFINITY TILT
Unlimited tilt positions rather than fixed steps, so you can angle the shade exactly where you want it.
UPF80 SUN PROTECTION
The canopy blocks 98.75% of UV and is rated to UV Standard 801, so the shade underneath genuinely protects.
SPIGOT INCLUDED
A 316 stainless steel spigot comes as standard, ready to fix straight to concrete, with in ground, decking and freestanding options available.
RATED FOR REAL CONDITIONS
65 km/h installed wind rating, or 30 km/h on the 900 freestanding base. Always close the umbrella in unsuitable weather.
Canopy colours. Natural, Slate and Smoked Tweed. Further colours are available made to order for an additional charge. Fabric colours can vary slightly from a printed or on screen swatch.
Frame. Black as standard. Non standard powder coat finishes are available to order with a longer lead time.
Warranty. The frame and mechanics are covered by a 5 year warranty. The canopy carries a 5 year warranty against fading in the three standard colours, extended to 10 years on made to order colours. The canopy is rated to UV Standard 801 at UPF80, blocking 98.75% of UV, and is water repellent and washable at 40 degrees without harsh chemicals.
Wind guidance. The wind rating depends on how the umbrella is installed: 65 km/h when fixed in place, or 30 km/h freestanding. Wind speeds are a guide only and wind damage is not covered by warranty, so close and secure the canopy whenever conditions turn.

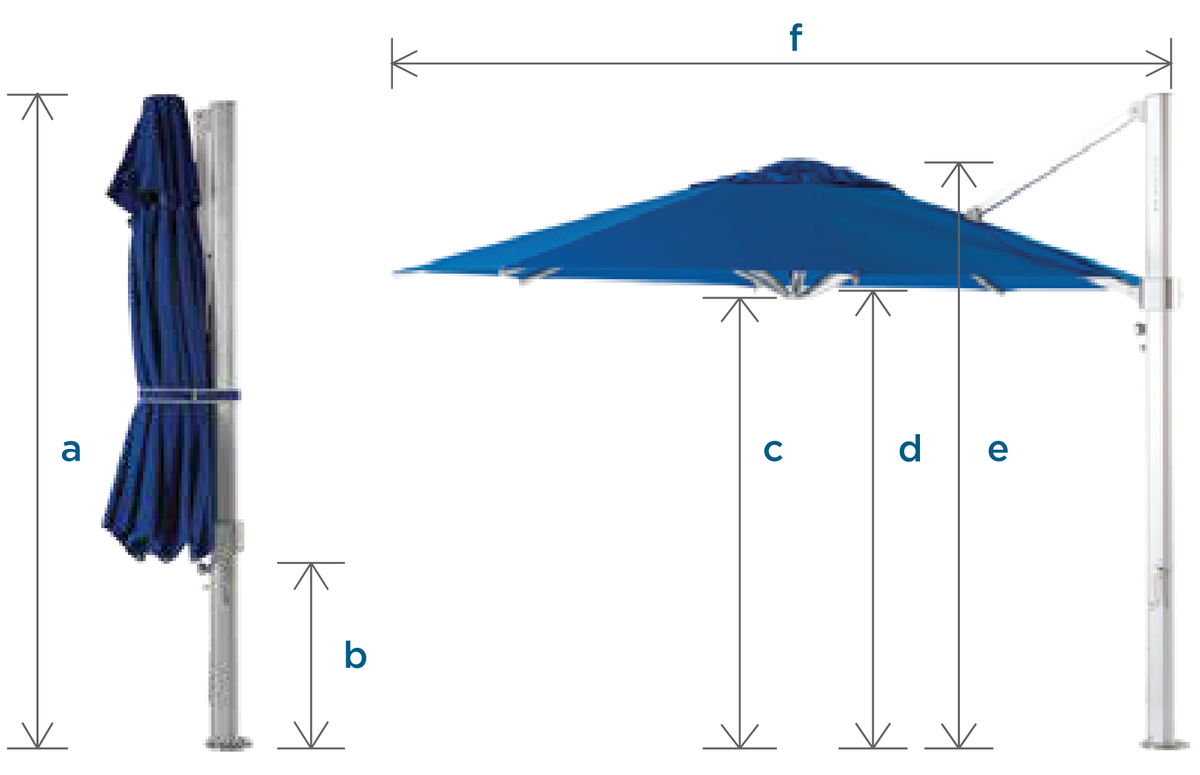

Dimensions
Canopy width300 cm
Canopy shade area9 m²
Span, back of mast to canopy edge329 cm
Height to canopy edge, open210 cm
Total height, open283 cm
Mast height, closed283 cm
Weight, folded44 kg
Care & Cleaning
Close and strap the canopy when the umbrella is not in use, and fold it neatly so the fabric does not rub in the same place every time. Rinse with clean water and a soft brush, and avoid harsh chemicals and bleach. Wipe the frame with a damp cloth and a mild detergent, keep the winding mechanism clean and dry, and store the umbrella closed and covered over winter or in extended bad weather.
Please note: packed for delivery this umbrella measures 295 x 51 x 30 cm and weighs 60 kg with the spigot.
